HP DisplayPort to Dual Link DVI Adapter HP DisplayPort To DVI-D Adapter HP DisplayPort To DVI-D Adapter (2-Pack) HP DisplayPort To DVI-D Adapter (4-Pack) HP DisplayPort To DVI-D Adapter (6-Pack) HP DisplayPort To VGA Adapter HP DisplayPort To VGA Adapter 2nd
Storage/Hard drives
SAS Hard Drives for HP Workstations: 600GB SAS 15K rpm 6Gb/s 3.5″ HDD 300GB SAS 15K rpm 6Gb/s 3.5″ HDD HP 1.2TB SAS 10K SFF HDD HP 600GB SAS 10K SFF HDD HP 300GB SAS 10K SFF HDD note:*For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of system disk is reserved for system recovery software.Up to (4) 3.5-inch 15K rpm SAS drives: 300, 600 GB; 2.4 TB maxUp to (4) 2.5-inch 10K rpm SAS drives: 300, 600 GB, 1.2 TB; 4.8 TB maxSAS controller add-in card required3rd and 4th SFF SAS HDDs will be automatically installed into a single 2:1 5.25″ external bay adapterRemovable Boot Drive option SATA Hard Drives: 500GB SATA 7200 rpm 6Gb/s 3.5″ HDD 1TB SATA 7200 rpm 6Gb/s 3.5″ HDD 2.0TB SATA 7200 rpm 6Gb/s 3.5″ HDD 3.0TB SATA 7200 rpm 6Gb/s 3.5″ HDD 500GB SATA 7.2K SED SFF HDD note:*For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of system disk is reserved for system recovery software.Up to (4) 3.5-inch 7200 rpm SATA drives: 500 GB, 1.0, 2.0, 3.0, 4.0* TB; 16.0 TB maxUp to (1) 2.5-inch SATA Self-Encrypting Drive (SED): 500 GB Opal 1Removable Boot Drive option*4TB drive planned to be available late 2014 SATA Solid State Drives: HP 128GB SATA 6Gb/s SSD HP 256GB SATA 6Gb/s SSD HP 512GB SATA 6Gb/s SSD HP 1TB SATA 6Gb/s SSD HP 256GB SATA 6Gb/s SED SSD Intel Pro 1500 180GB SATA SSD Samsung Enterprise 240GB SATA SSD Samsung Enterprise 480GB SATA SSD note:*For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of system disk is reserved for system recovery software.Up to (4) 2.5-inch 6Gb/s SATA Solid State Drives: 128, 256, 512 GB, 1 TB; 4.0 TB maxUp to (1) 2.5-inch 6Gb/s SATA Self-Encrypting Solid State Drive (SED SSD): 256 GB Opal 2Up to (4) 2.5-inch Intel Pro 1500 6Gb/s SATA Solid State Drive: 180 GB; 720 GB maxUp to (4) 2.5-inch Samsung Enterprise 6Gb/s SATA Solid State Drives: 240, 480 GB; 1.9 TB max3rd and 4th SSDs will be automatically installed into a single 2:1 5.25″ external bay adapter PCIe Solid State Drives: HP Z Turbo Drive 512GB SSD HP Z Turbo Drive 256GB SSD note:*For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of system disk is reserved for system recovery software.Up to (2) PCI Express Solid State Drives: 256, 512 GB; 1.0 TB maxPCIe SSDs are not available with SAS controller and/or HDDs Hard Drive Controllers Integrated SATA 6.0 Gb/s Controller RAID 0 Configuration – Striped Array RAID 0 Data Configuration — Boot/OS Drive + 2 Drive Striped Array RAID 1 Configuration – Mirrored Array RAID 10 Configuration – Striped/Mirrored Array LSI 9217-4i4e 8-port SAS 6Gb/s RAID Card note:SATA hardware RAID is supported on Linux systems that have support for the Intel RSTe technology.The Linux kernel, with built-in software RAID, provides excellent functionality and performance. It is a good alternative to hardware-based RAID. Please visit Hardware Support Matrix for Linux for RAID capabilities with Linux.All drives must be identical in type and capacity.RAID arrays greater than 2 TB are fully supported.1 Requires hard drives with identical speed, capacity, and interface. Specific user-configured hardware SAS RAID configurations are supported on this Linux system. For details, please visit Hardware Support Matrix for Linux.2 Specific user-configured hardware SAS RAID configurations are supported on this Linux system.IS: Striping of 2 or more HDDs into a single logical volumeIM: Mirroring of 2 HDDs into a single logical volumeIME: Mirroring of 3 or more HDDs into a single logical volume.For details, please visit Hardware Support Matrix for Linux.
Memory
4GB DDR4-2133 ECC Registered RAM 8GB DDR4-2133 ECC Registered RAM 16GB DDR4-2133 ECC Registered RAM note:For details on the supported memory configurations on the HP Z440 Workstation, please refer to the System Technical Specifications – System Board section of this document.Each processor supports up to 4 channels of DDR4 memory. To realize full performance at least 1 DIMM must be inserted into each channel.The CPUs determine the speed at which the memory is clocked. If an 1866MHz capable CPU is used in the system, the maximum speed the memory will run at is 1866MHz, regardless of the specified speed of the memory.1 ONLY registered DDR4 DIMMs are supported. DDR3 DIMMs ARE NOT SUPPORTED.2 Configurations of greater than 4x memory DIMMs require the HP Z440 Memory Cooling Solution, which is available both CTO (J2R51AV) and AMO (J2R52AA).
Networking/Communications
Integrated Intel I218LM PCIe GbE Controller Intel Ethernet I210-T1 PCIe NIC HP X520 10GbE Dual Port Adapter HP 10GbE SFP+ SR Transceiver HP 361T PCIe Dual Port Gigabit NIC Intel 7260 802.11 a/b/g/n PCIe WLAN NIC note:”Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/sec. For high speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.*Wireless access point and internet service required. Availability of public wireless access points limited.
Audio/Multimedia
Integrated Realtek HD ALC221 Audio
Input Devices
Keyboard: HP PS/2 Keyboard HP USB Keyboard HP USB Smart Card Keyboard HP Wireless Keyboard and Mouse Mice: HP PS/2 Mouse HP USB Optical Mouse HP USB 1000dpi Laser Mouse HP USB Optical 3-Button 2.9M OEM Mouse HP SpaceMouse Pro USB 3D Input Device HP SpacePilot Pro 3D USB Intelligent Controller
Power specifications
Specification
Description
Power Supply
700W 90% Efficient, Custom PSU (Wide-Ranging, Active PFC) 525W 85% Efficient, Custom PSU (Wide-Ranging, Active PFC)
Operating Voltage Range
90–269 VAC
Rated voltage range
100 – 240 VAC 118 VAC
Rated line frequency
50–60 Hz 400 Hz
Operating line frequency range
47–66 Hz 393–407 Hz
Rated input current
100-240V @ 9.5A 100-240V @ 9.5A
Heat Dissipation (Configuration and software dependent)
925W Yes, 90% Efficient The Z640 925W power supply efficiency report can be found at this link: TBD 525W Yes, 85% Efficient The Z440 525W power supply efficiency report can be found at this link: TBD
FEMP Standby Power Compliant @115V (<2W in S5 – Power Off)
Yes
EuP Compliant @ 230V (<0.5W in S5 – Power Off)
Yes
CECP Compliant @ 220V (<4W in S3 – Suspend to RAM)
Yes; Configuration dependent
Power Consumption in sleep mode (as defined by ENERGY STAR) – Suspend to RAM (S3) (Instantly Available PC)
<15w
Built-in Self-Test LED
Yes
Surge Tolerant Full Ranging Power Supply (withstands power surges up to 2000V)
Yes
Graphics specifications
Specification
Description
Form factor
Low Profile: 2.7 inches (H) x 5.7 inches (L), Half-Height
Weight
142 grams
Graphics controller
NVIDIA NVS 310 GPU: GF119-825
Connectors
2x DisplayPort
Bus type
PCI Express x16, 2.0 compliant
Memory
Size: 512MB DDR3 Clock: 875Mhz
Connectors
2 x DisplayPort
Maximum Resolution
Up to 2560 x 1600 (digital display) per display
Image Quality Features
The following video formats are supported: MPEG2 MPEG4 Part 2 Advanced Simple Profile H.264 SVC codec support Support for 3D Blu Ray VC1 DivX version 3.11 and later MVC A full range of video resolutions are supported including 1080p, 1080i, 720p, 480p and 480i. The NVS 310 GPU provides hardware acceleration for the computationally intensive parts of video processing, as well as provides improved video playback speeds via faster decode and transcode.
Display Output
Up to 2 displays in the following configurations: DisplayPort output: Drives two DisplayPort enabled digital display at resolutions up to 2560 × 1600 at 60 Hz with reduced blanking, when connected natively using the 2 DisplayPort connectors on the NVS 310 graphics card Supports 2 monitors up to resolution of 1920 × 1200 at 60 Hz with reduced blanking using DisplayPort 1.2 multi stream topology technology. DVI-D output: Drives two digital display at resolutions up to 1920 × 1200 at 60 Hz with reduced blanking using DisplayPort to DVI-D single-link cable adaptors Drives two digital display at resolutions up to 2560× 1600 at 60 Hz with reduced blanking using DisplayPort to DVI-D dual-link cable adaptors HDMI output: NVS 310 is capable of driving two high definition (HD) panels up to resolutions of 1920 × 1080P at 60 Hz using DisplayPort to HDMI cable adaptors VGA display output: Drives two analog display at resolutions up to 1920 × 1200 at 60 Hz using DisplayPort to VGA cable adaptor
Shading Architecture
Shader Model 5.0
Supported Graphics APIs
DX11, OpenGL 4.1
Available Graphics Drivers
Windows 8 Genuine Windows 7 Professional (64-bit and 32-bit) Microsoft Windows XP Professional (64-bit and 32-bit) Red Hat Enterprise Linux(RHEL) SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit) HP qualified drivers may be preloaded or the latest HP qualified drivers are available from the HP Software and Drivers. SUSE Linux Enterprise drivers may also be obtained from NVIDIA website.
note:1 The thermal solution used on this card is an active fan heatsink.2 Factory configured NVS 310 graphics card have no cable adpaters included. Adapters must be ordered separately.3 Option kit NVS 310 includes 2 DP to DVI-D cable adapters.
Specification
Description
Form factor
Low Profile: 2.713 inches in height × 5.7 inches in length Weight: ~ 142 grams
Graphics controller
NVIDIA NVS 315 (using GF119-825 GPU) Number of Cores: 48 CUDA cores Max. Power: 19.3W Cooling Solution: Active fan heatsink
DMS-59 output Cables included: For CTO: DMS-59 to DVI cable For AMO: DMS-59 to DVI cable and DMS-59 to VGA cable
Maximum Resolution
Maximum number of displays supported: 2 Maximum Resolution Support: DMS-59 to VGA: 2048 x 1536 @ 85Hz DMS-59 to DVI: 1980 x 1200 @ 60Hz DMS-59 to DP: 2560 x 1600 @ 60Hz
Image Quality Features
See Display Output section. The following video formats are supported: MPEG2 MPEG4 Part 2 Advanced Simple Profile H.264 SVC codec support Support for 3D Blu Ray VC1 DivX version 3.11 and later A full range of video resolutions are supported including 1080p, 1080i, 720p, 480p and 480i. The NVS 315 GPU provides hardware acceleration for the computationally intensive parts of video processing, as well as provides improved video playback speeds via faster decode and transcode.
Display Output
Up to 2 displays using one of the following DMS-59 cables: DMS-59 to DVI DMS-59 to VGA DMS-59 to DP DisplayPort output: Drives two DisplayPort enabled digital displays at resolutions up to 2560 × 1600 at 60 Hz with reduced blanking, when connected via the DMS-59 to DP adapter. DVI-D output: Drives two digital displays at resolutions up to 1920 × 1200 at 60 Hz with reduced blanking using DMS-59 to DVI-D single-link cable adaptor VGA display output: Drives two analog displays at resolutions up to 2048 × 1536 at 85 Hz using DMS-59 to VGA cable adaptor.
Shading Architecture
Shader Model 5.0
Supported Graphics APIs
DX11, OpenGL 4.3
Available Graphics Drivers
Windows 8 Genuine Windows 7 Professional (64-bit and 32-bit) Microsoft Windows XP Professional (64-bit and 32-bit) Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit) HP qualified drivers may be preloaded or the latest HP qualified drivers are available from the HP Software and Drivers. SUSE Linux Enterprise drivers may also be obtained from NVIDIA website.
note:1 The thermal solution used on this card is an active fan heatsink.2 Factory configured NVS 310 graphics card have no cable adapters included. Adapters must be ordered separately.3 Option kit graphics card includes DMS-59 to DVI and DMS-59 to VGA cables (one each).
Specification
Description
Form factor
Low Profile, 2.713 inches × 6.3 inches, single slot
Four mini-DisplayPort Four mini-DisplayPort-to-DisplayPort adapters included (DisplayPort to DVI-D, DisplayPort to VGA, DisplayPort to HDMI, and DisplayPort to Dual-Link DVI adapters available as separate accessories)
Memory
2GB DDR3
Bus type
PCI Express x16, Generation 2.0
Maximum Resolution
Mini-DisplayPort connectors support ultra-high-resolution panels (up to 3840 x 2160 @ 60Hz) note:This card supports up to four displays. For Windows XP, only 2 active displays are supported.
Image Quality Features
10-bit internal display processing, including hardware support for 10-bit scan-out
Display Output
DisplayPort with Multi-Stream Technology (MST) and High Bit Rate 2 (HBR2) support. Digital Display Support DisplayPort Output Drives four DisplayPort enabled digital display at resolutions up to 3840 × 2160 at 60 Hz with reduced blanking, when connected natively using the 4 DisplayPort connectors on the NVS 510 graphics card. DisplayPort Multi-Stream Topology (MST) Technology: Supports various combinations of display resolutions and number of displays when using DisplayPort multi stream topology technology – up to a maximum of 4 monitors at a resolution of 1920 × 1200 at 60 Hz with reduced blanking. DVI-D Output Drives four digital displays at resolutions up to 1920 × 1200 at 60 Hz with reduced blanking using DisplayPort to DVI-D single-link cable adaptors. Drives four digital displays at resolutions up to 2560× 1600 at 60 Hz with reduced blanking using DisplayPort to DVI-D dual-link cable adaptors. HDMI Output The NVS 510 graphics board is capable of driving four high definition (HD) panels up to resolutions of 1920 × 1080P at 60 Hz using DisplayPort to HDMI cable adaptors. Analog Display Support VGA display output: Drives four analog displays at resolutions up to 1920 × 1200 at 60 Hz using DisplayPort to VGA cable adaptors.
Supported Graphics APIs
Full Microsoft DirectX 11, Shader Model 5.0 support Full OpenGL 4.3 support
Available Graphics Drivers
Genuine Windows 7 Professional (64-bit and 32-bit) Microsoft Windows XP Professional (64-bit and 32-bit) Red Hat Enterprise Linux(RHEL) 6 Desktop/Workstation SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit) HP qualified drivers may be preloaded or the latest HP qualified drivers are available from the HP Software and Drivers.
note:Heatsink cooler design is active.
Specification
Description
Form factor
Low Profile, 2.713 inches × 6.3 inches, single slot
Four mini-DisplayPort Four mini-DisplayPort-to-DisplayPort adapters included (DisplayPort to DVI-D, DisplayPort to VGA, DisplayPort to HDMI, and DisplayPort to Dual-Link DVI adapters available as separate accessories)
Memory
2GB DDR3
Bus type
PCI Express x16, Generation 2.0
Maximum Resolution
Mini-DisplayPort connectors support ultra-high-resolution panels (up to 3840 x 2160 @ 60Hz) note:This card supports up to four displays. For Windows XP, only 2 active displays are supported.
Image Quality Features
10-bit internal display processing, including hardware support for 10-bit scan-out
Display Output
DisplayPort with Multi-Stream Technology (MST) and High Bit Rate 2 (HBR2) support. Digital Display SupportDisplayPort Output Drives four DisplayPort enabled digital display at resolutions up to 3840 × 2160 at 60 Hz with reduced blanking, when connected natively using the 4 DisplayPort connectors on the NVS 510 graphics card. DisplayPort Multi-Stream Topology (MST) Technology: Supports various combinations of display resolutions and number of displays when using DisplayPort multi stream topology technology – up to a maximum of 4 monitors at a resolution of 1920 × 1200 at 60 Hz with reduced blanking. DVI-D Output Drives four digital displays at resolutions up to 1920 × 1200 at 60 Hz with reduced blanking using DisplayPort to DVI-D single-link cable adaptors. Drives four digital displays at resolutions up to 2560× 1600 at 60 Hz with reduced blanking using DisplayPort to DVI-D dual-link cable adaptors. HDMI Output The NVS 510 graphics board is capable of driving four high definition (HD) panels up to resolutions of 1920 × 1080P at 60 Hz using DisplayPort to HDMI cable adaptors. Analog Display SupportVGA display output Drives four analog displays at resolutions up to 1920 × 1200 at 60 Hz using DisplayPort to VGA cable adaptors.
Supported Graphics APIs
Full Microsoft DirectX 11, Shader Model 5.0 support Full OpenGL 4.3 support
Available Graphics Drivers
Genuine Windows 7 Professional (64-bit and 32-bit) Microsoft Windows XP Professional (64-bit and 32-bit) Red Hat Enterprise Linux (RHEL) 6 Desktop/Workstation SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit) HP qualified drivers may be preloaded or available from the HP Software and Drivers.
note:Heatsink cooler design is active.
Specification
Description
Form factor
2.713” H x 6.3” L Single Slot, Low Profile Full Height Profile bracket installed Low Profile bracket included Weight: 133 grams
Graphics controller
NVIDIA Quadro K620 Graphics Card GM107 GPU 384 CUDA cores Max Power: 45 Watts
Connectors
1 DL-DVI(I) output, 1 DisplayPort output Factory Configured: No video cable adapter included Option Kit: One DP-to-DVI adapter included with card Additional DVI-to-VGA, DisplayPort-to-VGA or DisplayPort-to-DVI adapters are available as Factory Configuration or Option Kit accessories.
DisplayPort 1.2: up to 4096×2160 x 30 bpp @ 60Hz supports High Bit Rate 2 (HBR2) and Multi-Stream Transport (MST) Dual Link DVI(I) output: up to 2560 x 1600 x 32 bpp @ 60Hz Single Link-DVI(I) output: up to 1920 x 1200 x 32 bpp @ 60Hz
Image Quality Features
10-bit internal display processing pipeline 10-bit scan-out support
Display Output
1 Dual-link DVI-I connector 1 Display Port connector
Shading Architecture
Full Microsoft DirectX 11.1 Shader Model 5.0
Supported Graphics APIs
OpenGL 4.4 DirectX 11.1 API support includes: CUDA C CUDA C++ DirectCompute 5.0 OpenCL Java Python Fortran
Available Graphics Drivers
Microsoft Windows 8.1 Microsoft Windows 8 Microsoft Windows 7 Linux HP qualified drivers may be preloaded or available from the HP Software and Drivers.
note:1 Factory configured Quadro K620 does not include a video cable adapter. Video cable adapters must be ordered separately.2 Quadro K620 offered as an Option Kit (AMO) includes one DP-to-DVI video cable adapter. Additional cables must be ordered separately.
Specification
Description
Form factor
Low Profile: 2.713 inches × 6.3 inches, single slot
One dual-link DVI-I connector One DisplayPort connector
Maximum Resolution
VGA (via adapter cable): 2048 × 1536 × 32 bpp at 85 Hz Dual-link DVI 2560 × 1600 × 32 bpp at 60 Hz (reduced blanking) Single-link DVI 920 × 1200 × 32 bpp at 60 Hz (reduced blanking) DisplayPort 1.2 3840 × 2160 × 30 bpp at 60 Hz
RAMDAC
400 MHz integrated RAMDAC
Display Output
Maximum number of displays supported: 2
Shading Architecture
Shader Model 5.0
Supported Graphics APIs
DX11, OpenGL 4.4 Programming support for CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Python, and Fortran
Available Graphics Drivers
Microsoft Windows 8.1 Microsoft Windows 8 Microsoft Windows 7
Notes
note:1 Factory configured Quadro K420 does not include any video adapters. Adapters must be ordered separately.2 Option kit Quadro K420 includes one DP to DVI-D adapter.
Specification
Description
Form factor
4.38″ H x 7.97″ L Single Slot, Full Height
Weight:
240 grams
Graphics controller
NVIDIA Quadro K2200 Graphics Card GM107 GPU 640 CUDA cores Max Power: 67.7 Watts
1 DL-DVI(I) output, 2 DisplayPort outputs Factory Configured Option: No video cable adapter included Option Kit: One DP-to-DVI adapter included with card Additional DVI-to-VGA, DisplayPort-to-VGA or DisplayPort-to-DVI adapters are available as accessories
Maximum Resolution
DisplayPort: up to 4096 x 2160 x 30 bpp @ 60Hz supports High Bit Rate 2 (HBR2) and Multi-Stream Transport (MST) DL-DVI(I) output: up to 2560 x 1600 x 32 bpp @ 60Hz
Image Quality Features
10-bit internal display processing pipeline 10-bit scan-out support
Display Output
VGA: requires use of DVI-to-VGA and/or DP-to-VGA video cable adapters 400 MHz integrated RAMDAC Max resolution: 2048 x 1536 x 32 bpp @ 85 Hz DL-DVI(I): Max resolution: 2560 x 1600 x 32 bpp @ 60 Hz SL-DVI(I): Max resolution: 1920 x 1200 x 32 bpp @ 60 Hz DisplayPort: Supports HBR2 and MST Max resolution: 4096 x 2160 x 30 bpp @ 60 Hz (only one monitor can be connected to a Quadro K2200 DisplayPort connector at this resolution) Max number of DisplayPort daisy-chained monitors or hub connected monitors from a single Quadro K2200 DisplayPort connector: 4 with maximum resolution of 1920 x 1200 Maximum number of monitors across all available Quadro K2200 outputs is 4.
Shading Architecture
Full Microsoft DirectX 11.1 Shader Model 5.0
Supported Graphics APIs
OpenGL 4.4 DirectX 11.1 API support includes: CUDA C CUDA C++ DirectCompute 5.0 OpenCL Java Python Fortran
Available Graphics Drivers
Microsoft Windows 8.1 Microsoft Windows 8 Microsoft Windows 7 Linux HP qualified drivers may be preloaded or available from the HP Software and Drivers.
note:1 Quadro K2200 offered as Factory Configured Option does not include a video cable adapter. Video cable adapters must be ordered separately.2 Quadro K2200 offered as an Option Kit includes one DP-to-DVI video cable adapter. Additional cables must be ordered separately.3 A total maximum of 4 active monitors are supported across all display output types. This may be accomplished by using daisy chained DisplayPort 1.2 displays or a DisplayPort 1.2 hub device.4 A DisplayPort hub device may be used to connect multiple DisplayPort monitors to a single Quadro K2200 DisplayPort output.
AMD FirePro™ W2100 professional graphics Power: <50W Cooling: Active
Bus Type
PCI Express® x8, Generation 3.0
Memory
2GB DDR3 memory Memory Bandwidth: 14.4 GB/s
Connectors
2x Display Port 1.2 connectors Factory Configured: No video cable adapter included Option Kit: One DP-to-DVI adapter included with card Additional DisplayPort-to-VGA or DisplayPort-to-DVI adapters are available as Factory Configuration or Option Kit accessories.
Maximum Resolution
DisplayPort 1.2: up to 4096×2160 x 30 bpp @ 60Hz Dual Link DVI(I) (requires adapter cable): up to 2560 x 1600 x 32 bpp @ 60Hz Single Link-DVI(I)(requires adapter): up to 1920 x 1200 x 32 bpp @ 60Hz VGA(requires adapter): up to 1920 x 1200 x 32 bpp @ 60Hz
Display Output
2 x DisplayPort® 1.2
Shading Architecture
Shader Model 5.0
Supported Graphics APIs
OpenCL™ 1.2, DirectX® 11 and OpenGL 4.4
Available Graphics Drivers
Windows 8.1 (64-bit and 32-bit) Windows 7 (64-bit and 32-bit) Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Desktop 11(64-bit and 32-bit) Ubuntu HP qualified drivers may be preloaded or available from the the HP Software and Drivers.
Notes
note:Depending on the card model, native DisplayPort™ connectors and/or certified DisplayPort™ active or passive adapters to convert your monitor’s native input to your card’s DisplayPort™ or Mini-DisplayPort™ connector(s) may be required. See www.amd.com/firepro for details
Specification
Description
Form factor
4.376” H x 9.5” L Single Slot, Full Height
Weight
~458 grams (without extender)
Graphics controller
NVIDIA Quadro K4200 Graphics Card Kepler GK104 GPU 1344 CUDA cores Max Power: 108 Watts
1 DL-DVI(I) output, 2 DisplayPort outputs CTO: No video cable adapter included AMO: One DP-to-DVI adapter included with card Additional DVI-to-VGA, DisplayPort-to-VGA or DisplayPort-to-DVI adapters are available as accessories
Maximum Resolution
DisplayPort: up to 3840 x 2160 x 30 bpp @ 60Hz supports High Bit Rate 2 (HBR2) and Multi-Stream Transport (MST) DL-DVI(I) output: up to 2560 x 1600 x 32 bpp @ 60Hz
Image Quality Features
10-bit internal display processing pipeline 10-bit scan-out support
Display Output
VGA: requires use of DVI-to-VGA and/or DP-to-VGA video cable adapters 400 MHz integrated RAMDAC Max resolution: 2048 x 1536 x 32 bpp @ 85 Hz DL-DVI(I): Max resolution: 2560 x 1600 x 32 bpp @ 60 Hz SL-DVI(I): Max resolution: 1920 x 1200 x 32 bpp @ 60 Hz DisplayPort: Supports HBR2 and MST Max resolution: 3840 x 2160 x 30 bpp @ 60 Hz (only one monitor can be connected to a Quadro K4200 DisplayPort connector at this resolution)Max resolution: 3840 x 2160 x 30 bpp @ 60 Hz (only one monitor can be connected to a Quadro K4200 DisplayPort connector at this resolution) Max number of DisplayPort daisy-chained monitors or hub connected monitors from a single Quadro K4200 DisplayPort connector: 4 with maximum resolution of 1920 x 1200 Requires use of DP-to-HDMI cable Max Resolution: 1920 x 1080 x 32 bpp @ 60Hz HDMI: Requires use of DP-to-HDMI cable Max Resolution: 1920 x 1080 x 32 bpp @ 60Hz Maximum number of monitors across all available Quadro K4200 outputs is 4.
Shading Architecture
Full Microsoft DirectX 11 Shader Model 5.0
Supported Graphics APIs
OpenGL 4.4 DirectX 11.1 API support includes: CUDA C, CUDA C++ DirectCompute 5.0 OpenCL Java Python Fortran
Available Graphics Drivers
Microsoft Windows 8.1 Microsoft Windows 8 Microsoft Windows 7 Linux HP qualified drivers may be preloaded or available from the HP Software and Drivers.
Notes
note:1 Quadro K4200 offered as CTO does not include a video cable adapter. Video cable adapters must be ordered separately.2 Quadro K4200 offered as AMO includes one DP-to-DVI video cable adapter. Additional cables must be ordered separately.3 A total maximum of 4 active monitors are supported across all display output types. This may be accomplished by using daisy chained DisplayPort 1.2 displays or a DisplayPort 1.2 hub device.4 A DisplayPort hub device may be used to connect multiple DisplayPort monitors to a single Quadro K4200 DisplayPort output.
Specification
Description
Form factor
4.376” H x 10.5” L Dual Slot
Weight
~880 grams
Graphics controller
NVIDIA Quadro K5200 GK 110 GPU 2304 CUDA cores Max Power: 150 Watts
DVI-I (1), DVI-D (1), DP (2) Factory configured option: No adapter included with card. Option Kit: No adaptor included with card. DVI to VGA, DisplayPort to VGA, DisplayPort to DVI, and DisplayPort to Dual-Link DVI adapters available as accessories.
Image Quality Features
DisplayPort with Multi-Stream Technology (MST) and High Bit Rate 2 (HBR2), HDMI 1.4, and HDCP support NVIDIA 3D Vision™ technology
Display Output
400 MHz integrated RAMDAC Maximum resolution over VGA (through DVI to VGA cable): 2048 × 1536 × 32 bpp at 85 Hz Dual-link internal TMDS (DVI 1.0) Maximum resolution over digital port (single GPU and SLI mode): 2560 × 1600 × 32 bpp at 60 Hz (reduced blanking) Single-link internal TMDS (DVI 1.0) Maximum resolution over digital port (single GPU and SLI mode):1920 × 1200 × 32 bpp at 60 Hz (reduced blanking) DisplayPort with MST and HBR2 Maximum resolution: 4096 × 2160 × 30 bpp at 60Hz Maximum resolution:2560 x 1600 x 30bpp at 120Hz HDMI: Maximum resolution: 1920 × 1080 × 32 bpp at 60Hz
Shading Architecture
Shader Model 5.0
Supported Graphics APIs
OpenGL 4.4 DirectX 11 API support for NVIDIA’s CUDA ™ C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
Available Graphics Drivers
Windows 8 Windows 7 Professional (64-bit and 32-bit) Red Hat Enterprise Linux (RHEL) 6 Desktop/Workstation (64-bit) SUSE Linux Enterprise Desktop 11 SP3(64-bit and 32-bit) HP qualified drivers may be preloaded or available from the HP Software and Drivers.
Notes
note:1 NVIDIA GRID VGX Pass Through feature supported on NVIDIA Quadro K5200 to enable direct mapping of GPU to Virtual Machine.2 No display output adapter included.
Specification
Description
Form factor
4.376” H x 10.5” L Dual Slot Power: 234 Watts
Weight
~880 grams
Graphics controller
NVIDIA Quadro K6000 Graphics Card based on the GK180 GPU Core Count: 2880 Base Clock: 797 MHz Boost Clock: 902 MHz
DVI-I (1), DVI-D (1), DP (2), Optional 3D Stereo bracket with 3-pin mini-DIN connector. Factory configured option: No adapter included with card. Option Kit: No adaptor included with card. DVI to VGA, DisplayPort to VGA, DisplayPort to DVI, and DisplayPort to Dual-Link DVI adapters available as accessories.
Image Quality Features
DisplayPort with Multi-Stream Technology (MST) and High Bit Rate 2 (HBR2), HDMI 1.4, and HDCP support NVIDIA 3D Vision™ technology NVIDIA Premium Mosaic and nView
Display Output
400 MHz integrated RAMDAC Maximum resolution over VGA (through DVI to VGA cable): 2048 × 1536 × 32 bpp at 85 Hz Dual-link internal TMDS (DVI 1.0) Maximum resolution over digital port (single GPU and SLI mode): 2560 × 1600 × 32 bpp at 60 Hz (reduced blanking) Single-link internal TMDS (DVI 1.0) Maximum resolution over digital port (single GPU and SLI mode):1920 × 1200 × 32 bpp at 60 Hz (reduced blanking) DisplayPort with MST and HBR2 Maximum resolution: 3840 × 2160 × 36 bpp at 60Hz HDMI: Maximum resolution: 1920 × 1080 × 32 bpp at 60Hz
Shading Architecture
Shader Model 5.0 Full IEEE 764-2008 32-bit and 64-bit precision
Supported Graphics APIs
Full OpenGL 4.3 Full DirectX 11 CUDA API support includes: CUDA C CUDA C++ DirectCompute 5.0 OpenCL Java Python Fortran
Available Graphics Drivers
Windows 8 Windows 7 Professional (64-bit and 32-bit) Red Hat Enterprise Linux (RHEL) 6 Desktop/Workstation SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit) HP qualified drivers may be preloaded or available from the HP Software and Drivers. Novell SUSE Linux Enterprise drivers may also be obtained from NVIDIA website.
Notes
note:1 NVIDIA GRID VGX Pass Through feature supported on NVIDIA Quadro K6000 to enable direct mapping of GPU to Virtual Machine.2 No display output adapter included.
High performance GPU computing
Factory Configured
Option Kit
Form Factor
Size: 4.376 inches by 10.5 inches Slots: Dual Slot Power Connectors: One 6-pin and one 8-pin
CUDA, OpenACC, OpenCL 1.2 API support includes: C C++ Java Python Fortran
Supported Operating Systems
Windows 8 (64-bit) Genuine Windows 7 Professional (64-bit) Red Hat Enterprise Linux (RHEL) 5, 6 Desktop/Workstation (64-bit) SUSE Linux Enterprise Desktop 11 (64-bit) HP qualified drivers may be preloaded or available from the HP Software and Drivers. Novell SUSE Linux Enterprise drivers may also be obtained from NVIDIA website.
Processor Cores
GK110B GPU Base Clock: 745 MHz Boost Clock: up to 875 MHz 2888 CUDA cores
Power Consumption
~235 Watts
note:A 700W PSU is required for any K40 configuration on the Z440.
Multimedia and audio devices
Factory Configured
Option Kit
Integrated Realtek HD ALC221 Audio
Yes
No
Storage and hard drives
HP SAS (Serial Attached SCSI) Hard Drives for HP Workstations
Specification
Description
Capacity
600GB
Height
2.54 cm (1 in) Media Diameter 8.9 cm (3.5 in) Physical Size 10.17 cm (4 in)
Interface
SAS
Synchronous Transfer Rate (Maximum)
6.0 Gb/s
Buffer
16 MB
Seek time (typical reads, includes controller overhead, including settling)
Single Track 0.2 ms Average 3.4 ms Full Stroke 6.6 ms
Rotational Speed
15,000 rpm
Logical Blocks
1,172,123,568 – 512 byte blocks
Operating temperature
10° to 35° C (50° to 95° F)
Specification
Description
Capacity
300GB
Height
2.54 cm (1 in)
Width
Media Diameter 8.9 cm (3.5 in) Physical Size 0.17 cm (4 in)
Interface
SAS
Synchronous Transfer Rate (Maximum)
6Gb/s
Buffer
16MB
Seek Time (typical reads, includes controller overhead, including settling)
Single Track 0.2 ms Average 3.4 ms Full Stroke 6.6 ms
Rotational Speed
15,000 rpm
Operating temperature
10° to 35° C (50° to 95° F)
Specification
Description
Capacity
300GB
Height
1.53 cm (0.6 in)
Width
Media Diameter 6.36 cm (2.5 in) Physical Size 6.99 cm (2.75 in)
Interface
SAS 6Gb/s
Synchronous Transfer Rate (Maximum)
Up to 600MB/s
Buffer
64MB
Cache
multi-segmentable cache buffer
Seek Time (typical reads, includes controller overhead, including settling)
Single Track 0.4 ms (max) Average 3.6 ms Full Stroke 7.3 ms
Rotational Speed
10,000 rpm
Logical Blocks
585,937,500
Operating temperature
5° to 55° C (41° to 131° F)
Specification
Description
Capacity
600GB
Height
1.53 cm (0.6 in)
Width
Media Diameter: 6.36 cm (2.5 in) Physical Size: 6.99 cm (2.75 in)
Interface
SAS 6Gb/s
Synchronous Transfer Rate (Maximum)
Up to 600MB/s
Buffer
64MB
Cache
multi-segmentable cache buffer
Seek Time (typical reads, includes controller overhead, including settling)
Single Track: 0.4 ms (max) Average: 3.6 ms Full Stroke: 7.3 ms
Rotational Speed
10,000 rpm
Logical Blocks
1,172,123,568
Operating temperature
5° to 55° C (41° to 131° F)
Specification
Description
Capacity
1.2TB
Height
1.53 cm (0.6 in)
Drive Type
Media Diameter: 6.36 cm (2.5 in) Physical Size: 6.99 cm (2.75 in)
Interface
SAS 6Gb/s
Synchronous Transfer Rate (Maximum)
Up to 600MB/s
Buffer
64MB
Cache
multi-segmentable cache buffer
Number of Sectors
976,773,168
Seek Time (typical reads, includes controller overhead, including settling)
Single Track: 0.18ms (max) Average: 3.5ms Full Stroke: 7.17ms
Rotational Speed
10,000 rpm
Logical Blocks
2,344,225,968
Operating Temperature
5° to 55° C (41° to 131° F)
SATA (Serial ATA) Hard Drives for HP Workstations
Specification
Description
Capacity
500GB
Height
2.54 cm (1 in)
Width
Media Diameter: 8.9 cm (3.5 in) Physical Size: 10.17 cm (4 in)
Interface
Serial ATA (6.0Gb/s), NCQ enabled
Synchronous Transfer Rate (Maximum)
Up to 600MB/s
Buffer
16MB
Seek Time (typical reads, includes controller overhead, including settling)
Single Track: 2 ms Average: 11 ms Full Stroke: 21 ms
Rotational Speed
7,200 rpm
Logical Blocks
976,773,168
Operating Temperature
5° to 55° C (41° to 131° F)
Specification
Description
Capacity
1TB
Height
2.54 cm (1 in)
Width
Media Diameter: 8.9 cm (3.5 in) Physical Size: 10.17 cm (4 in)
Interface
Serial ATA (6.0Gb/s) NCQ enabled
Synchronous Transfer Rate (Maximum)
Up to 600 MB/s
Buffer
64MB
Cache
Adaptive
Seek Time (typical reads, includes controller overhead, including settling)
Single Track: 2 ms Average: 11 ms Full Stroke: 21 ms
Rotational Speed
7,200 rpm
Operating Temperature
5° to 55° C (41° to 131° F)
Specification
Description
Capacity
2 TB
Height
2.54 cm (1 in)
Width
Media Diameter: 8.9 cm (3.5 in) Physical Size: 10.17 cm (4 in)
Interface
Serial ATA (6.0 Gb/s), NCQ Enabled
Synchronous Transfer Rate (Maximum)
Up to 600MB/s
Buffer
64MB
Seek Time (typical reads, includes controller overhead, including settling)
Single Track: 1.0 ms Average: 11 ms Full Stroke: 18 ms
Rotational Speed
7,200 rpm
Logical Blocks
3,907,029,168
Operating Temperature
5° to 55° C (41° to 131° F)
Specification
Description
Capacity
3.0 TB
Height
2.54 cm (1 in)
Width
Media Diameter: 8.9 cm (3.5 in) Physical Size: 10.17 cm (4.0 in)
Interface
Serial ATA (6.0Gb/s), NCQ enabled
Synchronous Transfer Rate (Maximum)
Up to 6.0 Gb/s
Buffer
64 MB
Seek Time (typical reads, includes controller overhead, including settling)
Single Track: 6 ms Average: 11 ms Full Stroke: Not specified
DVD-ROM: 8.5 GB DL or 4.7 GB standard Full Stroke DVD: < 200 ms (seek) Full Stroke CD: < 200 ms (seek)
Maximum Data Transfer Rates
CD ROM Read CD-ROM, CD-R Up to 24X CD-RW Up to 24X DVD ROM Read DVD-RAM Up to 8X DVD+RW Up to 8X DVD-RW Up to 8X DVD+R DL Up to 8X DVD-R DL Up to 8X DVD-ROM Up to 8X DVD-ROM DL Up to 8X DVD+R Up to 8X DVD-R Up to 8X
Power
Source: SATA DC power receptacle DC Power Requirements: 5 VDC ± 5%-100 mV ripple p-p DC Current: 5 VDC -< 800 mA typical, <1600 mA maximum
Temperature: 5° to 50° C (41° to 122° F) Relative Humidity: 10% to 80% Maximum Wet Bulb Temperature: 29° C (84° F)
Operating Systems Supported
Windows 8.1 Windows 8 32-bit and 64-bit Windows 7 Professional 32-bit and 64-bit Windows Vista Business 64* Windows Vista Business 32* Windows Vista Home Basic 32* Windows 2000 Windows XP Professional Windows XP Home 32* Red Hat Enterprise Linux(RHEL) WS4**, 5, 6 Desktop/Workstation SUSE Linux Enterprise Desktop 10 & 11 No driver is required for this device. Native support is provided by the operating system.
Kit Contents
9.5mm Slim SuperMulti DVD Writer, 5.25″ ODD Bay adapter/carrier, slim SATA data/power cable, installation guide
Specification
Description
Description
9.5mm height, tray-load
Mounting Orientation
Either horizontal or vertical
Interface Type
SATA / ATAPI
Dimensions (W x H x D)
128 x 9.5 x 127mm
Disc Capacity
DVD-ROM Single layer: Up to 4.7 GB Double layer: Up to 8.5 GB
Access Times
DVD-ROM Single Layer: < 110 ms (typical) CD-ROM Mode 1: < 110 ms (typical) Full Stroke DVD: < 230 ms (typical) Full Stroke CD: < 220 ms (typical)
Power
Source: SATA DC power receptacle DC Power Requirements: 5 VDC ± 5%-100 mV ripple p-p DC Current: VDC – < 800mA typical, < 1600 mA maximum
Temperature: 5° to 50° C (41° to 122° F) Relative Humidity: 10% to 80% Maximum Wet Bulb Temperature: 29° C (84° F)
Operating Systems Supported
Windows 8.1, Windows 8 32-bit and 64-bit, Windows 7 Professional 32-bit and 64-bit, Windows Vista Business 64*, Windows Vista Business 32*, Windows Vista Home Basic 32*, Windows 2000, Windows XP Professional or Windows XP Home 32*. Red Hat Enterprise Linux(RHEL) WS4**, 5, 6 Desktop/Workstation SUSE Linux Enterprise Desktop 10 & 11 No driver is required for this device. Native support is provided by the operating system.
Kit Contents
9.5mm Slim DVD-ROM Drive, 5.25″ ODD Bay adapter/carrier, slim SATA data/power cable, installation guide
DVD-ROM 8.5 GB DL or 4.7 GB standard Blu-ray 25 GB (single-layer) 50 GB (dual-layer) 100/128 GB (BDXL) Full Stroke DVD < 230 ms (seek) Full Stroke CD < 220 ms (seek) Blu-ray < 230 ms (seek) (Full Stroke Blu-ray) Startup Time (Time to drive ready from tray loading) BD-ROM (SL/DL): 25S / 28S BD-R (SL/DL): 25S / 28S BD-RE (SL/DL): 25S / 28S DVD-ROM (SL/DL): 18S / 18S DVD-R (SL/DL): 25S / 25S DVD-RW: 25S DVD+R (SL/DL): 25S / 25S DVD+RW: 25S DVD-RAM: 45S CD-ROM: 15S
Maximum Data Transfer Rates
CD ROM Read CD-ROM, CD-R Up to 24X CD-RW Up to 24X DVD ROM Read DVD-RAM Up to 8X DVD+RW Up to 8X DVD-RW Up to 8X DVD+R DL Up to 8X DVD-R DL Up to 8X DVD-ROM Up to 8X DVD-ROM DL Up to 8X DVD+R Up to 8X DVD-R Up to 8X Blu-ray BD-ROM Up to 6X BD-ROM DL Up to 6X BD-R Up to 6X BD-R DL Up to 6X BD-R Up to 6X BD-RE SL/DL Up to 6X
Power
Source: SATA DC power receptacle DC Power Requirements: 5 VDC ± 5%-100 mV ripple p-p DC Current: 5 VDC -900 mA typical, 2000mA maximum
Temperature: 5° to 50° C (41° to 122° F) Relative Humidity: 10% to 80% Maximum Wet Bulb Temperature: 29° C (84° F)
Operating Systems Supported
Windows 8.1, Windows 8 32-bit and 64-bit, Windows 7 Professional 32-bit and 64-bit, Windows Vista Business 64*, Windows Vista Business 32*, Windows Vista Home Basic 32*, Windows 2000, Windows XP Professional or Windows XP Home 32*. Red Hat Enterprise Linux(RHEL) WS4**, 5, 6 Desktop/Workstation SUSE Linux Enterprise Desktop 10 & 11 No driver is required for this device. Native support is provided by the operating system.
Kit Contents
9.5mm Slim BDXL Blu-Ray Writer, 5.25″ ODD Bay adapter/carrier, slim SATA data/power cable, installation guide As Blu-ray is a new format containing new technologies, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute defects in the product. Flawless playback on all systems is not guaranteed. In order for some Blu-ray titles to play, they may require a DVI or HDMI digital connection and your display may require HDCP support. HD-DVD movies cannot be played on this workstation.
Specification
Description
Interface Type
Compatible with SAS or SATA controllers. Offers 6Gb/s performance when used with 6Gb/s HDDs.
Dimensions (WxHxD)
147.6 x 41.1 x 205 (5.81 x 1.62 x 8.08 in)
Approvals
Frame and Carrier: 1.73 kg (3.8 lbs.) Carrier: 0.45 kg (1 lbs.)
Specification
Description
Description
Supports hardware ECC (Error Correction Code) function Supports hardware CRC (Cyclic Redundancy Check) function Supports MS 4-bit parallel transfer mode Supports MS-PRO 4-bit parallel transfer mode Supports MS PRO-HG Duo 4-bit parallel transfer mode Supports SD 4-bit parallel transfer mode Supports UHS-104 SD 4-bit card (version 3.0) Supports CF v6.0 with PIO mode 6 and Ultra DMA 7 mode
Interface Type
USB 3.0 High-speed interface note:If there is a USB2 connection, USB2 transfer speeds are supported.
Dimensions (WxHxD)
124.5 x 101.6 x 25.4 mm (4.9 x 4 x 1 in) Fits conveniently in the 5.25″ drive bay.
Supported Media Types
CompactFlash Type I CompactFlash Type II Microdrive Secure Digital Card (SD) Secure Digital High Capacity (SDHC) SD Extended Capacity Memory Card (SDXC) SD Ultra High Speed II(SD UHSII) Memory Stick Memory Stick Select Memory Stick Duo (MS Duo) Memory Stick PRO (MS PRO) Memory Stick PRO Duo (MS PRO Duo) Memory Stick PRO-HG Duo MagicGate Memory Stick (MG) MagicGate Memory Stick Duo These additional media types are supported with a card adapter. Memory Stick Micro (M2) miniSD miniSD High Capacity Micro SD Memory Card (MicroSD) Micro SD High Capacity Memory Card (MicroSDHC) Test Parameters/Conditions – Power applied, unit operating on system ±5%
Operating Systems Supported
Windows 8 Pro (64-bit)* Windows 8.1 (64-bit)* Windows 8 (64-bit)* Windows 7 Ultimate (32-bit)** Windows 7 Ultimate (64-bit)** Windows 7 Professional (32-bit)** Windows 7 Professional (64-bit)** Windows 7 Home Basic** Windows 7 Home Premium (32-bit)** Windows 7 Home Premium (64-bit)** Windows Vista Business 64 Windows Vista Business 32 Windows Vista Home Basic 32 Windows XP Professional Windows XP Home 32 No driver is required for this device. Native support is provided by the operating system. Not all features are available in all editions of Windows 8. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows 8 functionality. Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased hardware to take full advantage of Windows 7 functionality.
Kit Contents
Windows 8 Pro (64-bit)* Windows 8.1 (64-bit)* Windows 8 (64-bit)* Windows 7 Ultimate (32-bit)** Windows 7 Ultimate (64-bit)** Windows 7 Professional (32-bit)** Windows 7 Professional (64-bit)** Windows 7 Home Basic** Windows 7 Home Premium (32-bit)** Windows 7 Home Premium (64-bit)** Windows Vista Business 64 Windows Vista Business 32 Windows Vista Home Basic 32 Windows XP Professional Windows XP Home 32 No driver is required for this device. Native support is provided by the operating system. Not all features are available in all editions of Windows 8. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows 8 functionality. Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased hardware to take full advantage of Windows 7 functionality.
Kit Contents
Media card reader, 5.25″ bracket/rails/bezel, Install Guide, IO & Security Software and Documentation CD
Approvals
USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport Specification Rev. 1.0, Compliant Intel Front Panel I/O Connectivity Design Guide V. 1.3, FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUVT
Weight
0.16 kg (0.35 lbs)
Networking and communications
Specification
Description
Connector
RJ-45 (motherboard integration)
Controller
Intel I218LM GbE platform LAN connect networking controller
WOL, auto MDI crossover, PXE, Muti-port teaming, RSS, Advanced cable diagnostics AMT 9.1 support, vPro compliant
Specifications
Description
Hardware Certifications
FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Specifications
Description
Operating Temperature
32°F to 113°F (0°C to 45°C)
Operating Humidity
0% to 85%, noncondensing
Dimensions (H x W x D)
1.19 x 1.38 x 5.57 cm (0.47 x 0.54 x 2.19 in)
Specification
Description
Connector
Two RJ-45
Controller
Intel® Ethernet I350 Controller
Data rates supported
10/100/1000 Mbps, Half- and full-duplex
Compliance
802.3, 802.3u, 802.3x, 802.3ab, 802.3ad, 802.1p, 802.1Q, 802.3az, IEEE 1588 PCIe v2.0 standard RoHS (6 of 6) FCC (U.S. only) Class B DOC (Canada) Class B CE EN 55024, EN55022 Class B VCCI Class II UL 1950 CSA 950 EN 60950 CE ACPI 1.1a Microsoft WHQL (Windows Hardware Quality Labs)
Data Path Width
Four lane (x4) PCI Express compatible with x4, x8, and x16 PCI Express slots
10BASE-T (half-duplex) 10 Mb/s 3.2W idle with EEE link partner 4.2W maximum
Operating Temperature
0° to 55° C (32° to 131° F)
Operating Humidity
10% to 95% non-condensing
Dimensions (H x W x D)
13.50 x 6.4 cm (5.3 x 2.5 in) (without brackets)
Operating System Driver Support
Windows 7 Professional 32-bit and 64-bit Red Hat Enterprise Linux(RHEL) WS4, 5, 6 Desktop/Workstation Novell SLED 10 & SLED 11
Kit Contents
HP 361T PCIe Dual Port Gigabit NIC PCA with a standard height bracket attached to it (the low profile bracket is included in the clamshell that the PCA ships in) Product Warranty statement and the Quick Install Card (QIC)
Specifications
Description
Operating Temperature
Operating: 10% to 90% (non-condensing) Non-operating: 5% to 95% (non-condensing)
Dimensions (H x W x D)
Native HMC: 26.8 x 30.0 x 2.4 mm Carrier Card Assembly: 84 x 119 mm (3.3 x 4.7 in)
Kit Contents
PCIe x1 card with full height bracket, rf antenna, antenna cable, separate low profile bracket, software CD and warranty.
note:1. WLAN supplier’s client utility is required for Cisco Compatible Extensions support with Microsoft Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista.2. Check latest software/driver release for updates on supported security features.3. Maximum output power may vary by country according to local regulations.4. In Power Save Polling mode and on battery power.5. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).
Physical specifications
Specification
Description

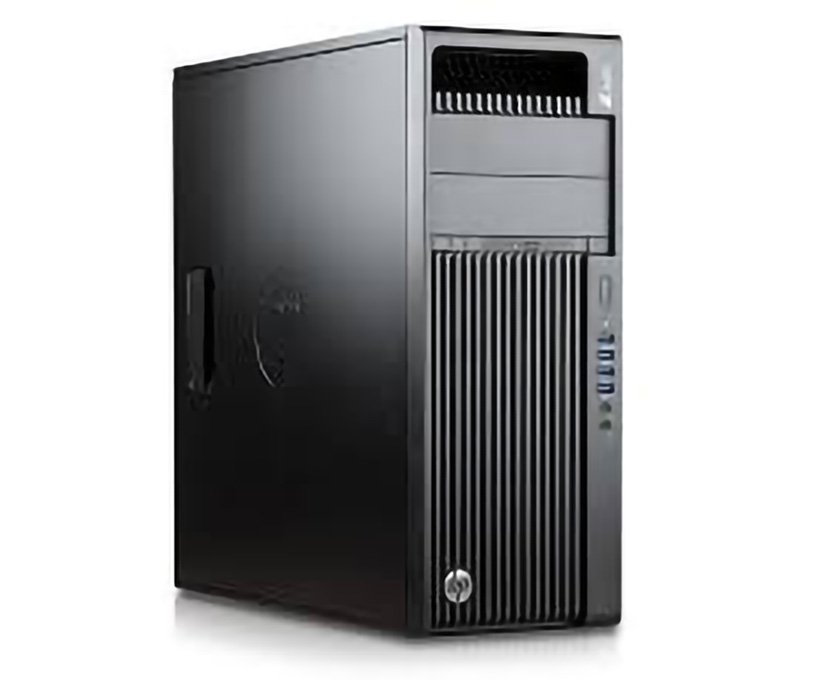

Chassis (W x D x H)
43.2 x 16.9 x 44.5 cm (17.0 x 6.65 x 17.5 in)
System weight
Actual weight depends upon configuration Minimum: 11.0 kg (24.3 lbs) Standard: 13.5 kg (29.8 lbs) Maximum: 17.5 kg (38.5 lbs)
Software/OS
Feature
Description
Operating systems (Preinstalled)
Windows 8.1 Pro 64-bit* Windows 7 Professional 64-bit (available through downgrade rights from Windows 8.1 64-bit)** Windows 7 Professional (MSNA) 64-Bit* HP Linux Installer Kit Red Hat Enterprise Linux (RHEL) Workstation – Paper License (1yr) note:* Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. See http://www.microsoft.com.** This system is preinstalled with Windows® 7 Pro software and also comes with a license and media for Windows 8.1 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.1 This second OS must be ordered with the HP Linux Installer Kit as the first OS.
Software
HP Performance Advisor HP Remote Graphics Software (RGS) 6.0 MS Office Home & Business 2013 Cyberlink PowerDVD and Power2Go Foxit PhantomPDF Express note:Available as a free download from HP Performance Advisor.NOTE 2: Supported operating systems: Windows 7 Professional 32/64 Windows 8 Professional 32/64 RHEL v6.5 SLED 11 SP3 For more information, go to HP Remote Graphics Software. Must select as a Configure to Order option.
note:
HP Cloud Recovery download tool (Cloud Recovery Client) is available under Software and Drivers section on the support page.
Environmental specifications
Specifications
Description
Temperature range
Operating: 5°C to 35°C (40°F to 95°F) Non-operating: -40°C to 60°C (-40°F to 140°F)
Relative humidity
Operating: 8% to 85% RH, non-condensing Non-operating: 8% to 90% RH, non-condensing
Maximum altitude
Operating: 3,000 m (10,000 ft) Non-operating: 9,100 m (30,000 ft)
Dynamic (new)
ShockOperating: ½-sine: 40g, 2-3ms (~62 cm/sec) Non-operating: ½-sine: 160 cm/s, 2-3ms (~105g) square: 422 cm/s, 20g note:Values represent individual shock events and do not indicate repetitive shock events. VibrationOperating random: 0.5g (rms), 5-300 Hz, up to 0.0025g²/Hz Non-operating random: 2.0g (rms), 5-500 Hz, up to 0.0150 g²/Hz note:Values do not indicate continuous vibration.
Cooling
Above 1524 m (5,000 ft.) altitude, maximum operating temperature is de-rated by 1° C (1.8° F) per 305 m (1,000 ft.) elevation increase
